| Drive System
| Belt Drive, Surface
polished polyurethane fiber flat belt
|
| Platter
|

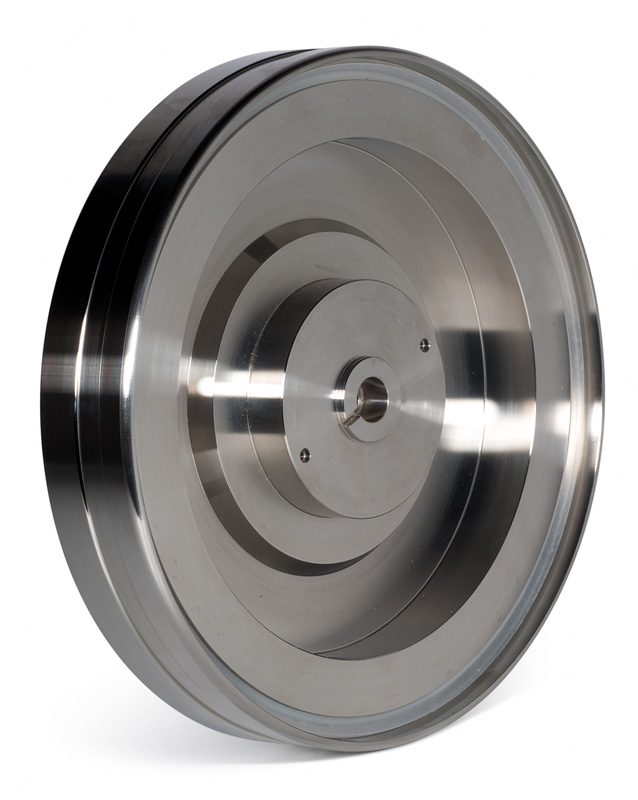

Main platter: SUS316L Forged and non-magnetism processed. Weight 19 kg

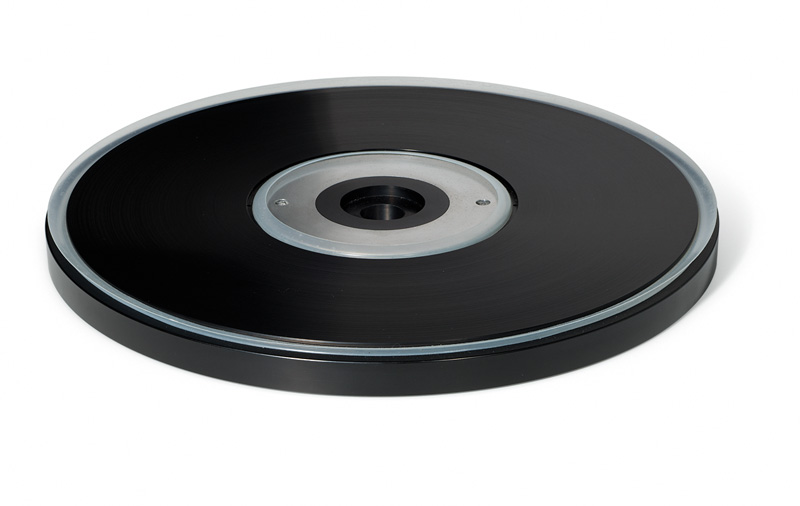

Upper platter: a choice of - A7075 (4kg), Pure Titanium (6kg)
|
| Motor
|
AC synchronous motor. Rotating speed controlled by
DC amplifier.
Motor weight 6.6 kg
|
| Chassis
|
Three different material sandwiched structure.
Chassis weight 43kg
|
| Rotation Speed
| 33 1/3 rpm, 45 rpm Precise speed adjustment
function.
|
| Wow & Flutter
| below 0.03% (W.R.M.S)
|
| Minimum Dimensions for
setting up
| 680 (W) x 480 (D) mm
|
| Total Weight
| 73 kg
|
| Power Supply Unit
|
Power consumption: 60W
Dimension and weight : 430(W) x 160(H) x 240(D) mm, 10kg
Operation voltage: 100 / 120 / 220 / 240 V (50 / 60 Hz)
|
| Air Condenser Unit
| Dimension: 430 (W) x 160
(H) x 240 (D) mm 10kg
|
| Accessories Supplied
|
Tonearm Base Board x 1 (drilled for specified tonearm)
Platter Cover "The Platter Top"
TechDAS Disc Stabilizer
AC Cable
|
| Optional Items &
Accessories |
Second Tonearm Base Board
Tonearm Base Board for supplement (for 1st and/or 2nd tonearms)
Special Damping Table

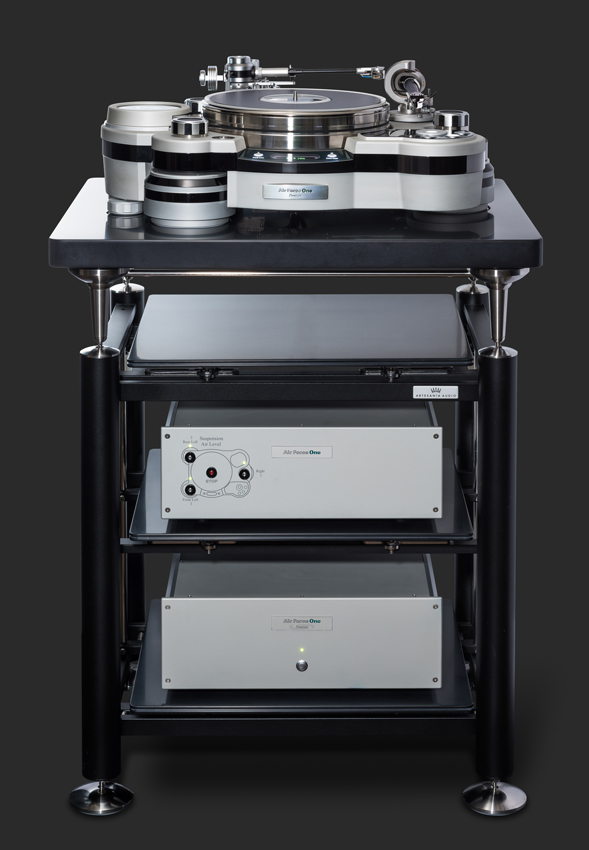

Air Force Mounting Rack
|
