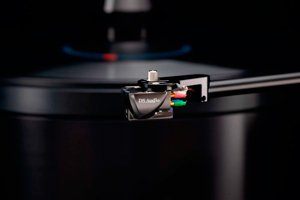

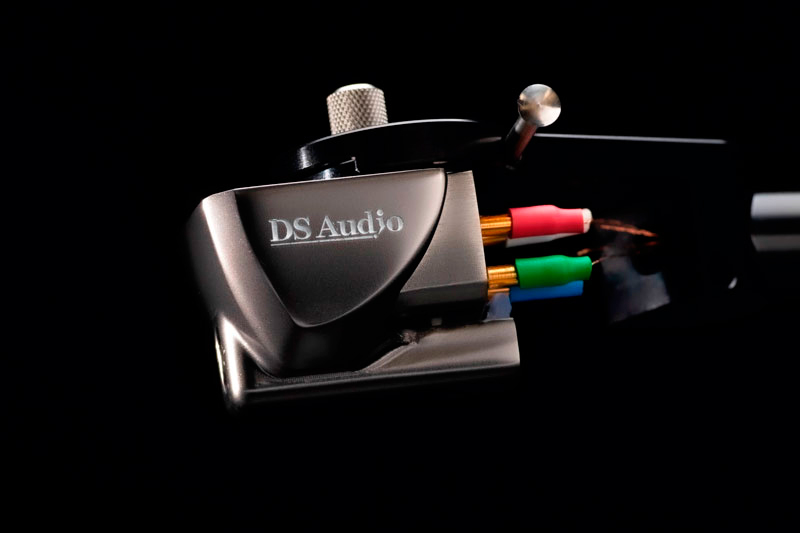

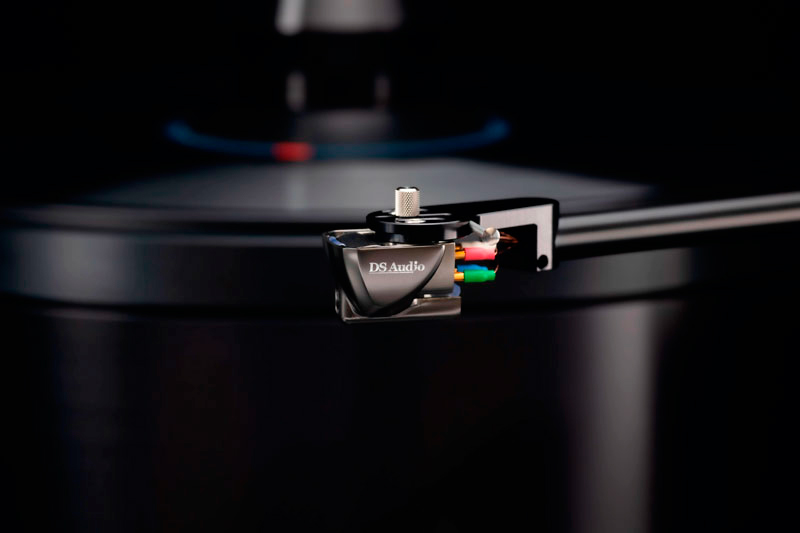

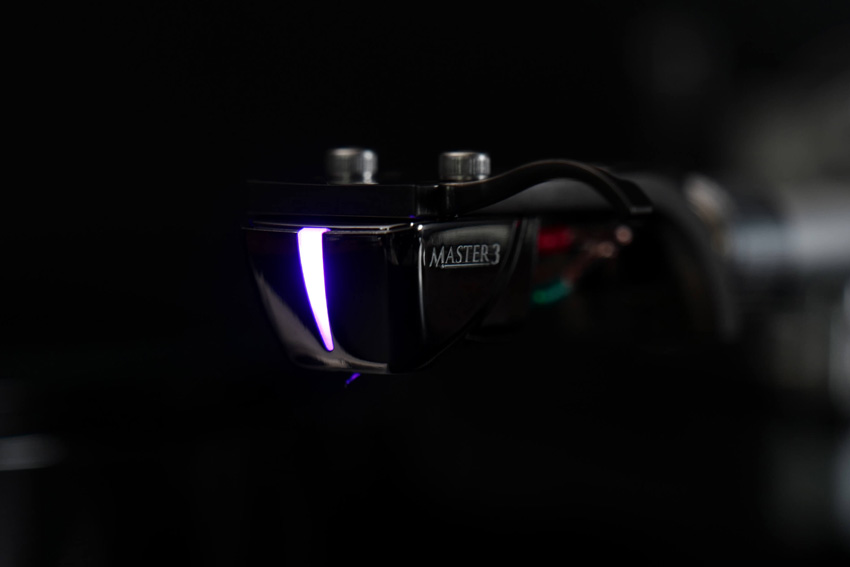

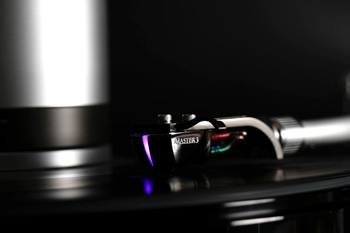

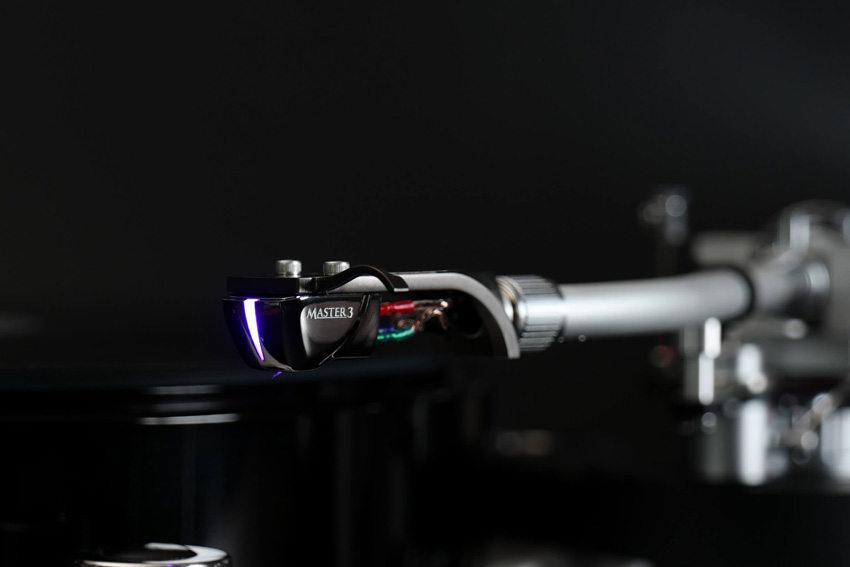

DS Master3 Optical Cartridge

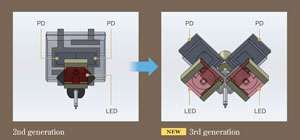

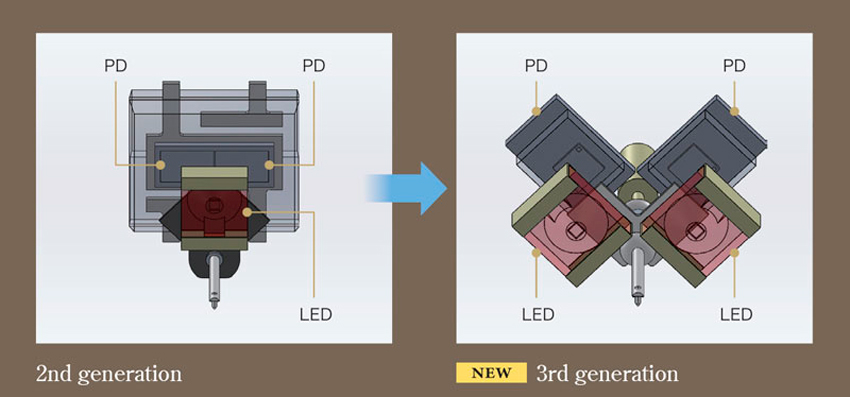

Signal output Photo-electric Conversion
Channel separation 27db more(1KHz)
Weight 7,9g
Output signal level 70mV more
Canti-lever Square pliar diamond
Body material Ultra duralumin
Needle pressure 2g~2,2g(2,1g is recommended)
Stylus Micro Ridge |

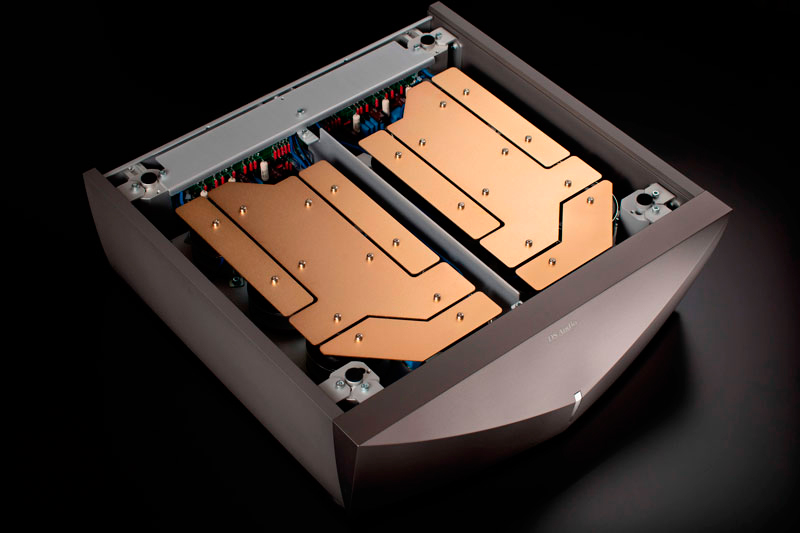

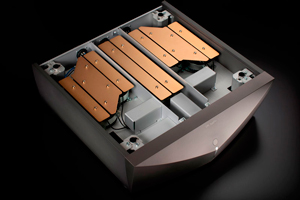

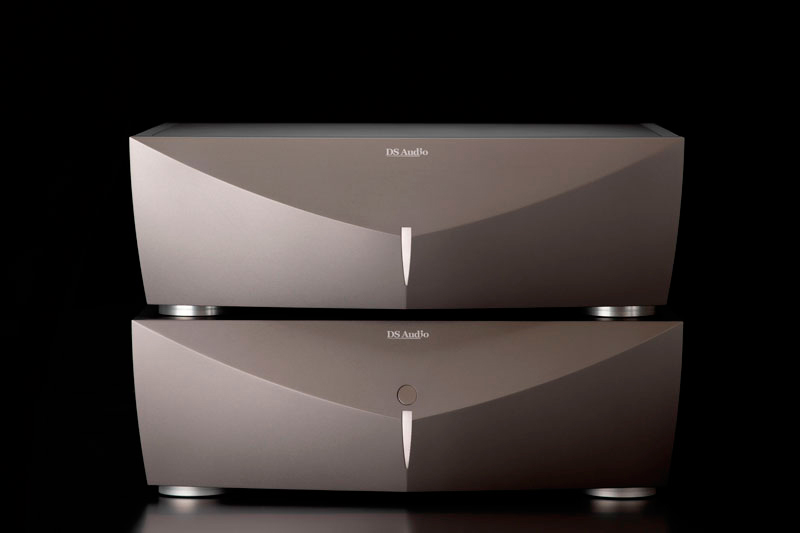

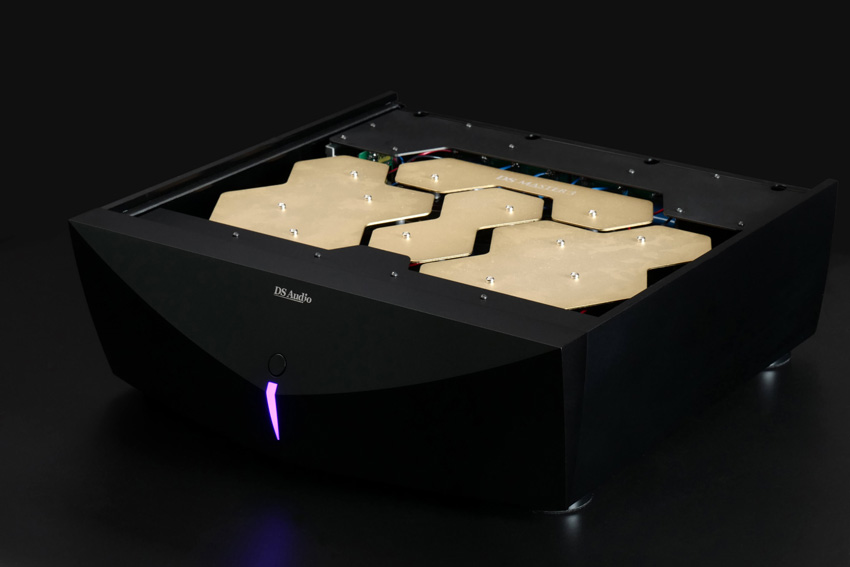

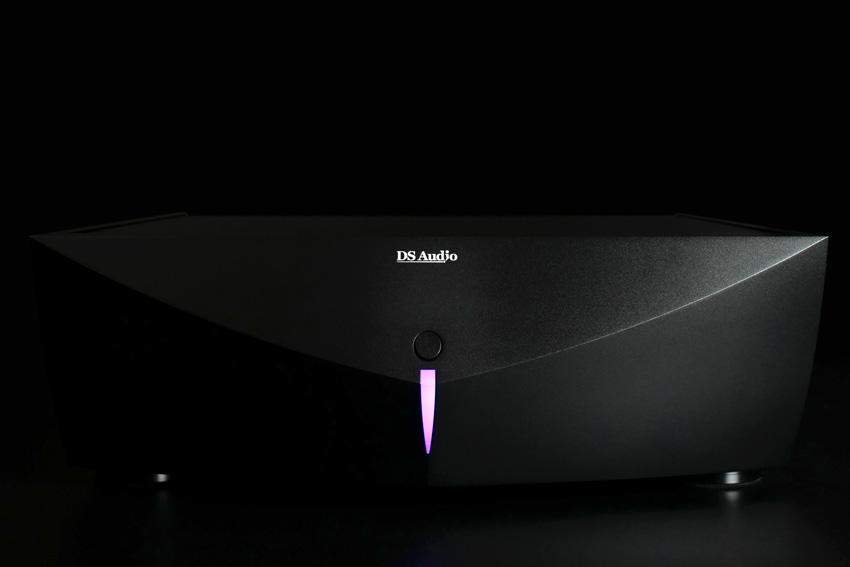

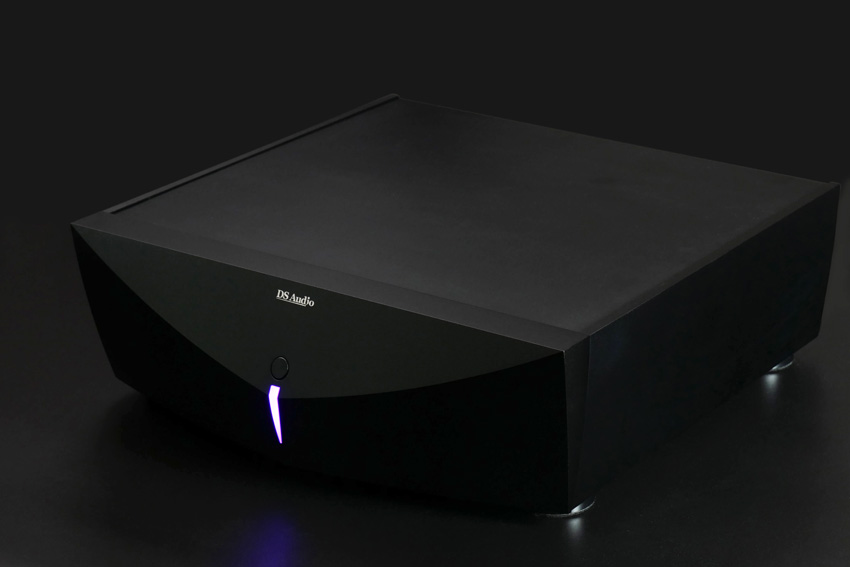

DS Master3 Equalizer for Optical
Cartridge
Output voltage 700mV(1kHz)
Output impedance RCA 120Ω XLR 120Ω
Pre amp input impedance More than 10kΩ
Input terminal RCA terminal
Output terminal RCA terminal×3,
XLR terminal×3
Size W45,2cm×H15,3cm×D48,4cm
Weight 24.0kg |
